Product Summary
The ASV-4.000MHZ-E-J-T is a 3.3Vdc HCMOS/SMD crystal clock oscillator for clock signaling for μprocessors, pc motherboards & graphic cards.
Parametrics
ASV-4.000MHZ-E-J-T standard specifications: (1)ABRACON P/N: ASV Series; (2)Frequency Range: 0.312MHz to 165 MHz; (3)Operating Temperature: -10℃ to + 70℃ (see options); (4)Storage Temperature: - 55℃ to + 125℃; (5)Overall Frequency Stability: ± 100 ppm max. (see options); (6)Supply Voltage (Vdd): 3.3 Vdc ± 10% (see options); (7)Symmetry: 40/60 % max.@ 1/2Vdd (see options); (8)Output Load: 15pF (10TTL) (see options); (9)Output Voltage: VOH = 0.9 * Vdd min.; VOL = 0.4 Vdc max; (10)Tristate Function(see Tri-state option): "1" (VIH >= 0.7*Vdd) or open: Oscillation "0" (VIL < 0.3*Vdd) : Hi Z ; (11)Disable Current (with Power Down): 10μA max.; (12)Disable Current (without Power Down): 200μA (Option A); (13)Enable Time (with Power Down): 3.5ms Typ, 5ms max.; (14)Enable Time (without Power Down): 100ns (Option A); (15)Disable Time (with Power Down): 100ns max.; (16)Disable Time (without Power Down): 100ns max. (Option A); (17)Aging at 25℃ (firstyear): ± 5ppm max.
Features
ASV-4.000MHZ-E-J-T features: (1)HCMOS/Compatible, 3.3Vdc, 2.5Vdc, & 1.8Vdc options; (2)Suitable for RoHS reflow; (3)Seam sealed package assures high reliability; (4)High output drive capability (up to 50pF).

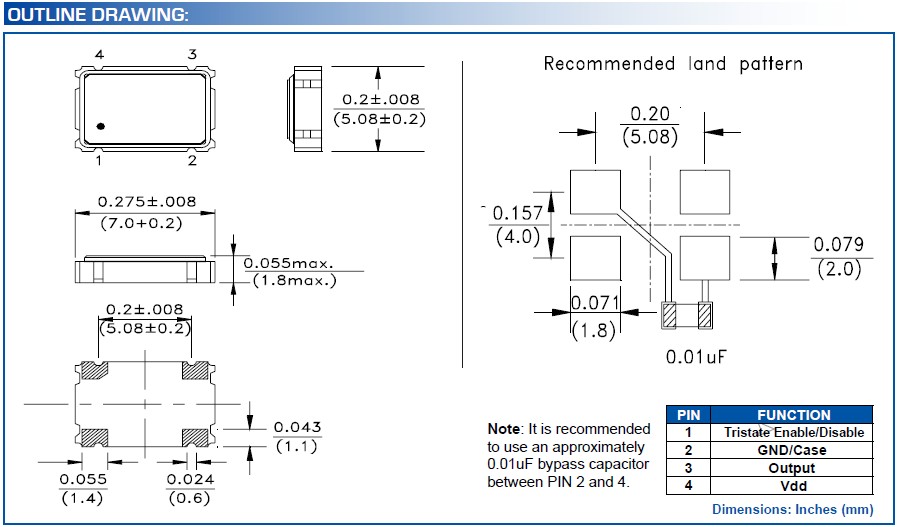

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ASV-4.000MHZ-E-J-T |
|
OSCILLATOR 4.000MHZ 3.3V SMD |
Data Sheet |
|
|
||||||||||||||
