The HT6560A decoder is a CMOS LSI for remote control system applications. The HT6560A is paired with the 318 series of encoders. For proper operation a pair of encoder/decoder pair with the same number of address and data format should be selected (refer to the encoder/decoder cross reference tables). The applications of the HT6560Ainclude Burglar alarm system, Smoke and fire alarm system, Garage door controllers, Car door controllers, Car alarm system, Security system, Cordless telephones, Other remote control systems.
Parametrics
HT6560A absolute maximum ratings: (1)Supply Voltage:–0.3V to 13V; (2)Storage Temperature:–50℃ to 125℃; (3)Input Voltage: VSS–0.3V to VDD+0.3V; (4)Operating Temperature:–20℃ to 75℃.
Features
HT6560A features: (1)Operating voltage: 2.4V to 12V; (2)Low power and high noise immunity CMOS technology; (3)Low standby current; (4)Capable of decoding 18 bits of information; (5)Pairs with HOLTEK’s 318 series of encoders; (6)8 to 18 address pins; (7)0 to 8 data pins; (8)Trinary address setting; (9)Two times of receiving check; (10)Built-in oscillator needs only a 5% resistor; (11)Valid transmission indictor; (12)Easily interface with an RF or an infrared transmission medium; (13)Minimal external components.

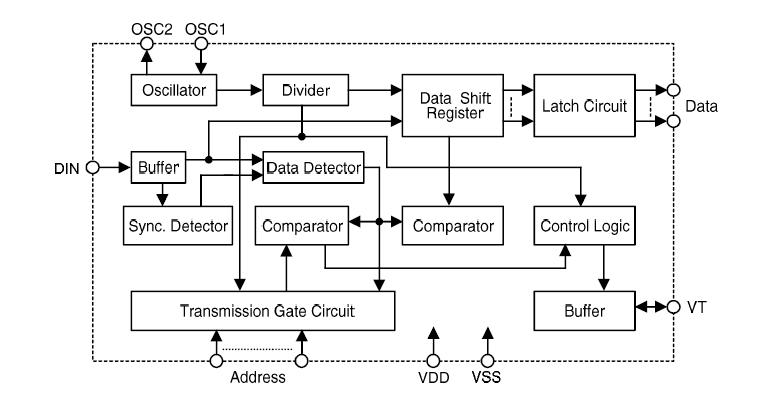

Diagrams
 |
