Product Summary

The ISP1582BS is a cost-optimized and feature-optimized Hi-Speed Universal Serial Bus (USB) peripheral controller. It fully complies with Ref. 1 "Universal Serial Bus Specification Rev. 2.0", supporting data transfer at high-speed (480 Mbit/s) and full-speed (12 Mbit/s). The ISP1582BS provides high-speed USB communication capacity to systems based on microcontrollers or microprocessors. It communicates with a microcontroller or microprocessor of a system through a high-speed general-purpose parallel interface. The applications of the ISP1582BS are Personal digital assistant, Digital video camera, Digital still camera, 3G mobile phone, MP3 player, Communication device, for example: router and modem, Printer and Scanner.

Parametrics

ISP1582BS absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +4.6 V; (2)VCC(I/O), input/output supply voltage: -0.5 to +4.6 V; (3)VI, input voltage: -0.5 to VCC + 0.5 V; (4)Ilu, latch-up current: 100 mA; (5)Vesd, electrostatic discharge voltage: -2000 to +2000 V; (6)Tstg, storage temperature: -40 to +125℃.

Features

ISP1582BS features: (1)Supports data transfer at high-speed (480 Mbit/s) and full-speed (12 Mbit/s); (2)High performance USB peripheral controller with integrated Serial Interface Engine (SIE), Parallel Interface Engine (PIE), FIFO memory and data transceiver; (3)Automatic Hi-Speed USB mode detection and Original USB fall-back mode; (4)Supports sharing mode; (5)Supports VBUS sensing; (6)Supports Generic DMA (GDMA) slave mode; (7)High-speed DMA interface; (8)Fully autonomous and multi-configuration DMA operation; (9)Seven IN endpoints, seven OUT endpoints, and a fixed control IN and OUT endpoin; (10)Integrated physical 8 kB of multi-con?guration FIFO memory; (11)Endpoints with double buffering to increase throughput and ease real-time data transfer; (12)n Bus-independent interface with most microcontrollers and microprocessors; (13)12 MHz crystal oscillator with integrated PLL for low EMI; (14)Software-controlled connection to the USB bus (SoftConnect); (15)Low-power consumption in operation and power-down modes; suitable for use in bus-powered USB devices.

Diagrams

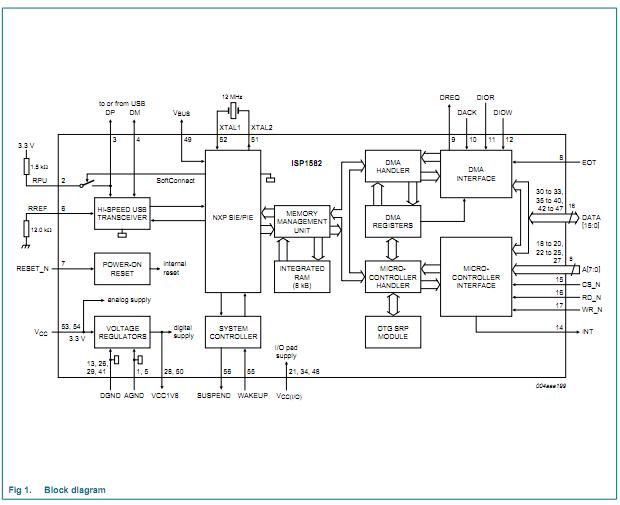

ISP1582BS block diagram
