Product Summary

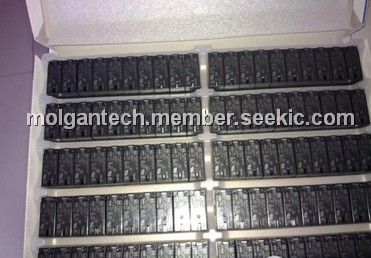

The JW2ASN-12V is a compact PC board power relay.

Parametrics

JW2ASN-12V absolute maximum ratings: (1)Nominal switching capacity: 5 A 250 V AC, 5 A 30 V DC; (2)Max. switching power: 1,250 VA, 150 W; (3)Max. switching voltage: 250 V AC, 30 V DC; (4)Max. switching current: 5 A.

Features

JW2ASN-12V features: (1)Miniature package with universal terminal footprint; (2)High dielectric withstanding for transient protection: 10,000 V surge in μs between coil and contact; (3)Sealed construction; (4)Class B coil insulation types available; (5)TV rated (TV-5) types available (only for 1 Form A type); (6)VDE, TüV, SEMKO, SEV, FIMKO, TV-5 also approved.

Diagrams

JW2ASN-12V wiring diagram

JW2ASN-B-DC12V
JW2ASN-B-DC12V
Panasonic Electric Works
General Purpose / Industrial Relays 2 Form A 5A 250VAC 12V
Data Sheet
0-1: $2.18
1-25: $2.00
25-50: $1.79
50-100: $1.51
JW2ASN-B-DC48V
JW2ASN-B-DC48V
Panasonic Electric Works
General Purpose / Industrial Relays 2 Form A 5A 250VAC 48V
Data Sheet
0-1: $2.41
1-25: $2.20
25-50: $1.97
50-100: $1.67
JW2ASN-B-DC6V
JW2ASN-B-DC6V
Panasonic Electric Works
General Purpose / Industrial Relays 2 Form A 5A 250VAC 6V
Data Sheet
0-1: $2.18
1-25: $2.00
25-50: $1.79
50-100: $1.51
JW2ASN-B-DC9V
JW2ASN-B-DC9V
Panasonic Electric Works
General Purpose / Industrial Relays 2 Form A 5A 250VAC 9V
Data Sheet
0-1: $2.18
1-25: $2.00
25-50: $1.79
50-100: $1.51
JW2ASN-DC12V
JW2ASN-DC12V
Panasonic Electric Works
General Purpose / Industrial Relays 5A 12VDC DPST-NO NON-LATCHING PCB
Data Sheet
0-1: $1.60
1-25: $1.47
25-50: $1.43
50-100: $1.38
JW2ASN-DC24V
JW2ASN-DC24V
Panasonic Electric Works
General Purpose / Industrial Relays 5A 24VDC DPST-NO NON-LATCHING PCB
Data Sheet
0-1: $1.64
1-25: $1.50
25-50: $1.39
50-100: $1.31
