Product Summary

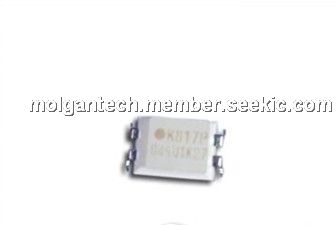

The K817P is an optocoupler with Phototransistor Output. It consists of a photo-transistor optically coupled to a gallium arsenide infrared-emitting diode in an 4-lead up to 16-lead plastic dual inline package. The elements are mounted on one leadframe using a coplanar technique, providing a fixed distance between input and output for highest safety requirements. The K817P is suitable for Programmable logic controllers, modems, answering machines, general applications.
Parametrics
K817P absolute maximum ratings: (1)Reverse voltage, VR: 6 V; (2)Forward current, IF: 60 mA; (3)Forward surge current, IFSM: 1.5 A; (4)Power dissipation, PV: 100 mW; (5)Junction temperature, Tj: 125℃.
Features
K817P features: (1)Endstackable to 2.54 mm (0.1’) spacing; (2)DC isolation test voltage VIO = 5 kV; (3)Low coupling capacitance of typical 0.3 pF; (4)Current Transfer Ratio (CTR) selected into groups; (5)Low temperature coefficient of CTR; (6)Wide ambient temperature range; (7)Underwriters Laboratory (UL) 1577 recognized,file number E-76222; (8)CSA (C–UL) 1577 recognized, file number E-76222 – Double Protection; (9)Coupling System U.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 K817P |
Vishay Semiconductors |
Transistor Output Optocouplers Phototransistor Out Single CTR 50-600% |
Data Sheet |
|
|
||||||||||||
|
K817P1 |
Vishay Semiconductors |
Transistor Output Optocouplers Phototransistor Out Single CTR 40-80% |
Data Sheet |
|
|
||||||||||||
|
K817P2 |
Vishay Semiconductors |
Transistor Output Optocouplers Phototransistor Out Single CTR 63-125% |
Data Sheet |
|
|
||||||||||||
|
K817P3 |
Vishay Semiconductors |
Transistor Output Optocouplers Phototransistor Out Single CTR 100-200% |
Data Sheet |
|
|
||||||||||||
|
K817P4 |
Vishay Semiconductors |
Transistor Output Optocouplers Phototransistor Out Single CTR 160-320% |
Data Sheet |
|
|
||||||||||||
|
K817P5 |
Vishay Semiconductors |
Transistor Output Optocouplers Phototransistor Out Single CTR 50-150% |
Data Sheet |
|
|
||||||||||||
|
K817P6 |
Vishay Semiconductors |
Transistor Output Optocouplers Phototransistor Out Single CTR 100-300% |
Data Sheet |
|
|
||||||||||||
|
K817P7 |
Vishay Semiconductors |
Transistor Output Optocouplers Phototransistor Out Single CTR 80-160% |
Data Sheet |
|
|
||||||||||||
