Product Summary
The MDT10P72K is the EPROM-Based 8-bit micro-controller which uses a fully static CMOS technology process to achieve higher speed and smaller size with the low power consumption and high noise immunity. On chip memory includes 2K words of ROM, and 128 bytes of static RAM.
Parametrics
MDT10P72K absolute maximum ratings: (1)Maximum current into Vdd pin: 250mA; (2)Maximum current out of Vss pin: 300mA; (3)Maximum current sourced by PortA: 150mA; (4)Maximum current sourced by PortB: 200mA; (5)Maximum current sourced by PortC: 200mA ; (6)Maximum current sunk by PortA: 150mA; (7)Maximum current sunk by PortB: 200mA; (8)Maximum current sunk by PortC: 200mA; (9)Maximum output current sourced by any I/O pin: 25mA; (10)Maximum output current sunk by any I/O pin: 25mA.
Features
MDT10P72K features: (1)Fully CMOS static design ; (2)8-bit data bus ; (3)On chip EPROM size : 2.0 K words; (4)Internal RAM size : 160 bytes(128 general purpose registers, 32 special registers); (5)37 single word instructions ; (6)14-bit instructions ; (7)8-level stacks; (8)Operating voltage : 2.5 V ~ 5.5 V (PRD Disable); 4.5 V ~ 5.5 V (PRD Enable); (9)Operating frequency: DC ~ 20 MHz; (10)Addressing modes include direct, indirect and relative addressing modes; (11)Power-on Reset; (12)Power edge-detector Reset; (13)Power range-detector Reset; (14)Sleep Mode for power saving; (15)Capture,Compare,PWM module; (16)Synchronous serial port with SCM.

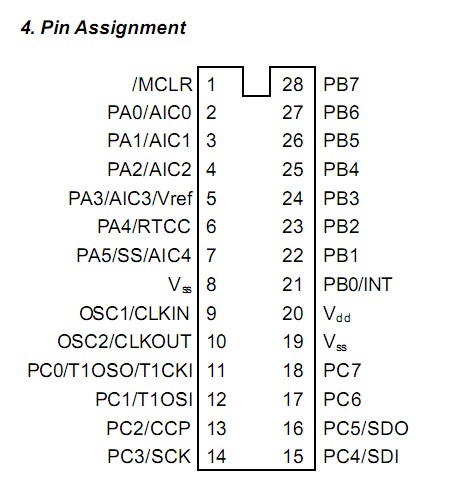

Diagrams
 |
