Product Summary
The OP491GS is a single-supply, 3 MHz bandwidth amplifier featuring rail-to-rail inputs and outputs. All are guaranteed to operate from a 3 volt single supply as well as ±5 volt dual supplies. Fabricated on Analog Devices’ CBCMOS process, the OP491GS has a unique input stage that allows the input voltage to safely extend 10 volts beyond either supply without any phase inversion or latch-up. The applications of the OP491GS are Industrial Process Control, Battery Powered Instrumentation, Power Supply Control and Protection, Telecom, Remote Sensors, Low Voltage Strain Gage Amplifiers, DAC Output Amplifier.
Parametrics
OP491GS absolute maximum ratings: (1)Supply Voltage:+16 V; (2)Input Voltage:GND to VS + 10 V; (3)Differential Input Voltage:7 V; (4)Output Short-Circuit Duration to GND:Indefinite; (5)Storage Temperature Range:–65℃ to +150℃; (6)Operating Temperature Range:–40℃ to +125℃; (7)Junction Temperature Range:–65℃ to +150℃; (8)Lead Temperature Range (Soldering 60 sec): +300℃.
Features
OP491GS features: (1)Single-Supply Operation: 2.7 V to 12 V; (2)Wide Input Voltage Range; (3)Rail-to-Rail Output Swing; (4)Low Supply Current: 300 μA/Amp; (5)Wide Bandwidth: 3 MHz; (6)Slew Rate: 0.5 V/μs; (7)Low Offset Voltage: 700 μV; (8)No Phase Reversal.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

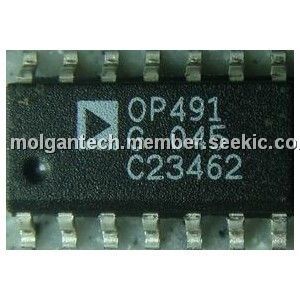

![]() OP491GS |
![]() |
![]() IC OPAMP GP R-R 3MHZ QUAD 14SOIC |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||||
![]() |
![]() OP491GS-REEL |
![]() |
![]() IC OPAMP GP R-R 3MHZ QUAD 14SOIC |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||||
![]() |
![]() OP491GS-REEL7 |
![]() |
![]() IC OPAMP GP R-R 3MHZ QUAD 14SOIC |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||
![]() |
![]() OP491GSZ |
![]() |
![]() IC OPAMP GP R-R 3MHZ QUAD 14SOIC |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||
![]() |
![]() OP491GSZ-REEL |
![]() |
![]() IC OPAMP GP R-R 3MHZ QUAD 14SOIC |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||
![]() |
![]() OP491GSZ-REEL7 |
![]() |
![]() IC OPAMP GP R-R 3MHZ QUAD 14SOIC |
![]() Data Sheet |
![]()
|
|
