Product Summary
The PAL16L8VC is a 24-pin small PAL. The PAL16L8VC draws only 100mA maximum supply current as compared to 210mA in the 24-pin Medium PAL devices. The PAL16L8VC offers speed as fast as 25ns maximum propagation delay. National Semiconductor’s Schottky TTL process with titanium tungsten fusible links provides high-speed user-programmable replacements for conventional SSI/MSI logic with significant chip-count reduction.
Parametrics
PAL16L8VC absolute maximum ratings: (1)Supply Voltage: -0.5V to +7.0V; (2)Input Voltage: -1.5V to 5.5V; (3)Off-state Output Voltage: -1.5V to +5.5V; (4)Input current: -30mA to +5mA; (5)Output current: +100mA; (6)Storage Temperature: -65℃ to +150℃; (7)Ambient Temperature with power Applied: -65℃ to +125℃; (8)Junction Temperature: -65℃ to +150℃.
Features
PAL16L8VC features: (1)as fast as 25ns maximum propagation delay; (2)User-programmable replacement for TTL logic; (3)Large variety of JEDEC-compatible programming equipment available; (4)Fully supported by National PLAN development software; (5)Security fuse prevents direct copying of logic patterns.

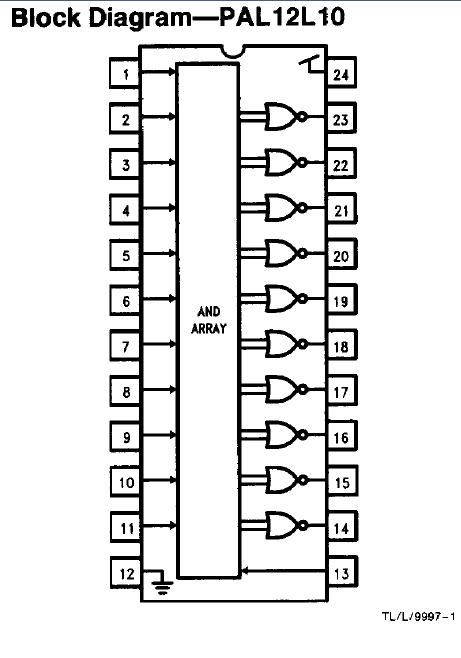

Diagrams
 |
