Product Summary
The SFH756V is a Plastic Connector Housing. The applications of the SFH756V include Household Electronics, Power Electronics, Optical Networks, Light Barriers.
Parametrics
SFH756V absolute maximum ratings: (1)Operating Temperature Range: –40 to +85 ℃; (2)Storage Temperature Range: –40 to +100 ℃; (3)Junction Temperature: 100 ℃; (4)Soldering Temperature (2 mm from case bottom, t ≤ 5 s): 260 ℃; (5)Reverse Voltage: 3 V; (6)Forward Current: 50 mA; (7)Surge Current (t ≤ 10 μs, D = 0): 1 A; (8)Power Dissipation: 120 mW; (9)Thermal Resistance, Junction/Air: 450 K/W.
Features
SFH756V features: (1)2.2 mm Aperture holds Standard 1000 Micron Plastic Fiber; (2)No Fiber Stripping Required; (3)Good Linearity (Forward current > 2 mA); (4)Molded Microlens for Efficient Coupling.

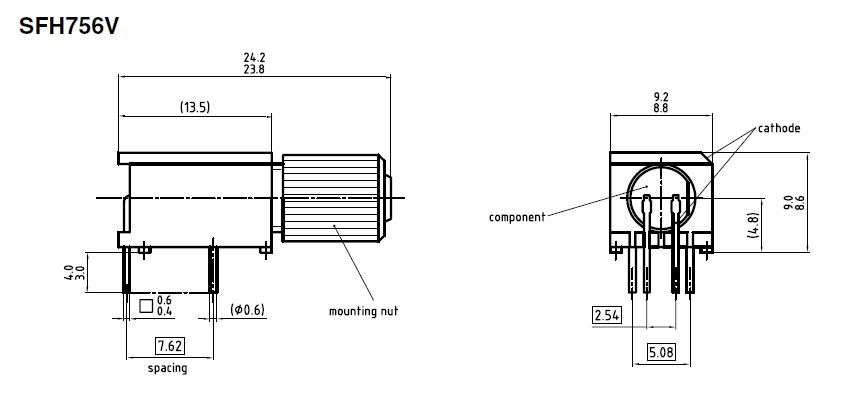

Diagrams
