TMS320F28335PGFA

Product Summary

The TMS320F28335PGFA is a signal controller (DSC). The C28x+FPU based controllers have the same 32-bit fixed-point architectureas TI’s existing C28x DSCs, but also include a single-precision (32-bit) IEEE 754 floating-point unit (FPU). It is a very efficient C/C++ engine, enabling users to develop their system control software in a high-level language. It also enables math algorithms to be developed using C/C++. The TMS320F28335PGFA is as efficient at DSP math tasks as it is at system control tasks that typically are handled by microcontroller devices. This efficiency removes the need for a second processor in many systems. The 32 x 32-bit MAC 64-bit processing capabilities enable the controller to handle higher numerical resolution problems efficiently. Add to this the fast interrupt response with automatic context save of critical registers, resulting in a device that is capable of servicing many asynchronous events with minimal latency. The TMS320F28335PGFA has an 8-level-deep protected pipeline with pipelined memory accesses. This pipelining enables TMS320F28335PGFA to execute at high speeds without resorting to expensive high-speed memories. Special branch-look-ahead hardware minimizes the latency for conditional discontinuities. Special store conditional operations further improve.

Parametrics

TMS320F28335PGFA absolute maximum ratings: (1)Supply voltage range, with respect to VSS, VDDIO, VDD3VFL: -0.3 V to 4.6 V; (2)Supply voltage range, with respect to VSSA, VDDA2, VDDAIO: -0.3 V to 4.6 V; (3)Supply voltage range, with respect to VSS, VDD: -0.3 V to 2.5 V; (4)Supply voltage range, with respect to VSSA, VDD1A18, VDD2A18: -0.3 V to 2.5 V; (5)Supply voltage range, with respect to VSS, VSSA2, VSSAIO, VSS1AGND, VSS2AGND: -0.3 V to 0.3 V; (6)Input voltage range, VIN: -0.3 V to 4.6 V; (7)Output voltage range, VO: -0.3 V to 4.6 V; (8)Input clamp current, IIK (VIN < 0 or VIN > VDDIO): ±20 mA; (9)Output clamp current, IOK (VO < 0 or VO > VDDIO): ±20 mA; (10)Operating ambient temperature ranges, A version, TA: -40℃ to 85℃; S version, TA: -40℃ to 125℃; Q version, TA: -40℃ to 125℃; (11)Junction temperature range, TJ: -40Ωto 150℃; (12)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TMS320F28335PGFA features: (1)Fully compliant with CAN protocol, version 2.0B; (2)Supports data rates up to 1 Mbps; (3)Thirty-two mailboxes, each with the following properties: Configurable as receive or transmit; Configurable with standard or extended identifier; Has a programmable receive mask; Supports data and remote frame; Composed of 0 to 8 bytes of data; Uses a 32-bit time stamp on receive and transmit message; Protects against reception of new message; Holds the dynamically programmable priority of transmit message; Employs a programmable interrupt scheme with two interrupt levels; Employs a programmable alarm on transmission or reception time-out; (4)Low-power mode; (5)Programmable wake-up on bus activity; (6)Automatic reply to a remote request message; (7)Automatic retransmission of a frame in case of loss of arbitration or error; (8)32-bit local network time counter synchronized by a specific message (communication in conjunction with mailbox 16); (9)Self-test mode: Operates in a loopback mode receiving its own message. A dummy acknowledge is provided, thereby eliminating the need for another node to provide the acknowledge bit.

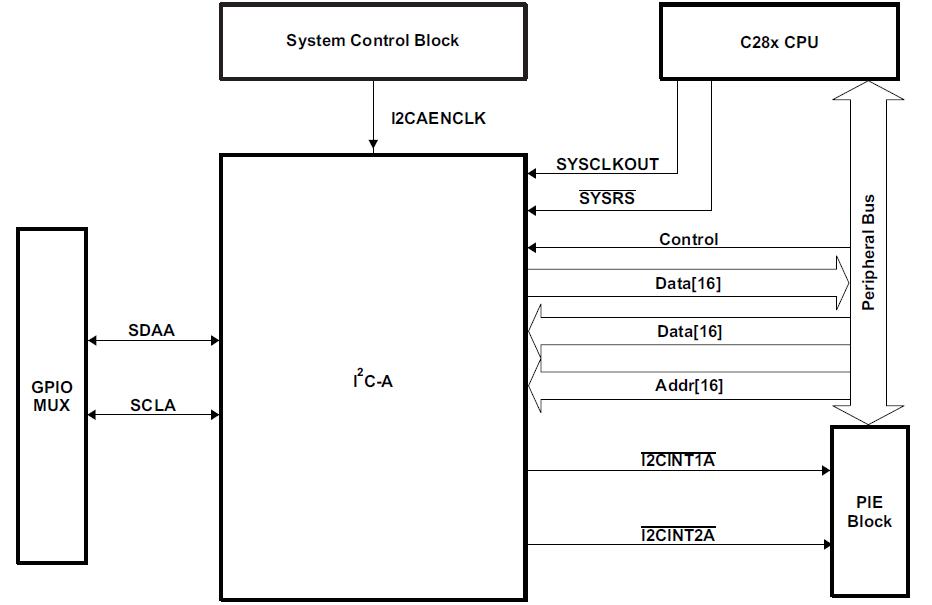

Diagrams
