TMS320F28335PTPQ

Digital Signal Controller, LQFP-176, 32BIT, 512KB, 150 MHz, 1.9V, Six-Channel DMA Controller

Rated 5 Rating 5 | reviews | Write a review

Price:: US $15.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $15.00~20.00

PartNumber:: TMS320F28335PTPQ

Brand:: Texas Instruments - TI | Pack: LQFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-27

From Other Seller

Part Number:TMS320F28335PTPQ
US $15.00 - 20.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TMS320F28335PTPQ is a Digital Signal Controller. It is a highly integrated, high-performance solution for demanding control applications.

Parametrics

TMS320F28335PTPQ absolute maximum ratings: (1)Supply voltage range, VDDIO, VDD3VFL: –0.3 V to 4.6 V; (2)Supply voltage range, VDDA2, VDDAIO: –0.3 V to 4.6 V; (3)Supply voltage range, VDD: –0.3 V to 2.5 V; (4)Supply voltage range, VDD1A18, VDD2A18: –0.3 V to 2.5 V; (5)Supply voltage range, VSSA2, VSSAIO, VSS1AGND, VSS2AGND: –0.3 V to 0.3 V; (6)Input voltage range, VIN: –0.3 V to 4.6 V; (7)Output voltage range, VO: –0.3 V to 4.6 V; (8)Input clamp current, IIK (VIN < 0 or VIN > VDDIO): ±20 mA; (9)Output clamp current, IOK (VO < 0 or VO > VDDIO): ±20 mA; (10)Operating ambient temperature ranges, TA: –40℃ to 85℃; (11)Junction temperature range, TJ: –40℃ to 150℃; (12)Storage temperature range, Tstg: –65℃ to 150℃.

Features

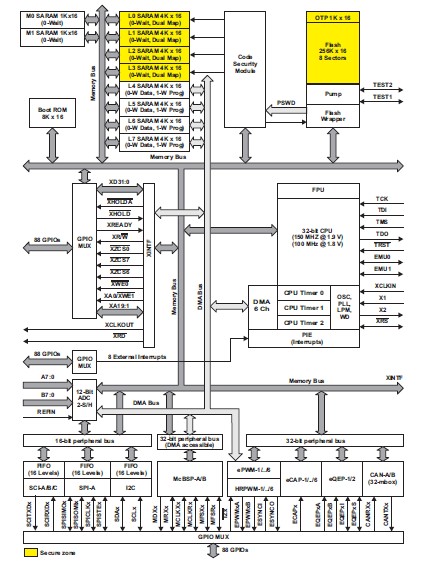

TMS320F28335PTPQ features: (1)High-Performance Static CMOS Technology; (2)Six-Channel DMA Controller (for ADC, McBSP, ePWM, XINTF, and SARAM); (3)16-Bit or 32-Bit External Interface (XINTF); (4)On-Chip Memory: 256K × 16 Flash, 34K × 16 SARAM; (5)Boot ROM (8K × 16); (6)Clock and System Control; (7)GPIO0 to GPIO63 Pins Can Be Connected to One of the Eight External Core Interrupts; (8)Peripheral Interrupt Expansion (PIE) Block That Supports All 58 Peripheral Interrupts; (9)128-Bit Security Key/Lock; (10)Enhanced Control Peripherals; (11)Three 32-Bit CPU Timers; (12)Serial Port Peripherals; (13)12-Bit ADC, 16 Channels.
