Product Summary

The TS01ABE is a Tiny Slide Switch. The device is sutiable for Test & measurement equipment, Computers & peripherals and Telecommunications & networking equipment.

Parametrics

TS01ABE absolute maximum ratings: (1)Category: Switches; (2)Mounting Type: Through Hole; (3)Circuit: SPDT; (4)Switch Function: On-On; (5)Contact Rating @ Voltage: 0.4VA @ 20VAC/DC; (6)Termination Style: PC Pin; (7)Orientation: Right Angle; (8)Actuator Type: Standard; (9)Lead Free Status: Lead Free; (10)RoHS Status: RoHS Compliant.

Features

TS01ABE features: (1)Reliable contact design ensures long electrical life; (2)Ratings up to 3 AMPS; (3)Epoxy terminal-seal compatible with bottom wash cleaning; (4)RoHS compliant.

Diagrams

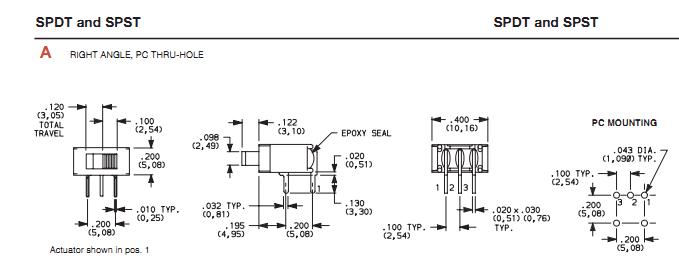

TS01ABE dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TS01ABE
TS01ABE
C&K Components
Slide Switches SPDT ON-ON R/A
Data Sheet
0-1: $2.90
1-25: $2.61
25-50: $2.53
50-100: $2.41
