Product Summary
The ADUM4160BRWZ is a Full/Low Speed 5 kV USB Digital Isolator. Combining high speed CMOS and monolithic air core transformer technology, the ADUM4160BRWZ provides outstanding performance characteristics and are easily integrated with low and full speed USB-compatible peripheral devices. The applications of the ADUM4160BRWZ include USB peripheral isolation, Isolated USB hub, and Medical applications.
Parametrics
ADUM4160BRWZ absolute maximum ratings: (1)Storage Temperature (TST): -65℃ to +150℃; (2)Ambient Operating Temperature (TA): -40℃ to +105℃; (3)Supply Voltages (VBUS1, VBUS2, VDD1, VDD2)1: -0.5 V to +6.5 V; (4)Upstream Input Voltage (VUD+,VUD., VSPU)1, 2: -0.5 V to VDD1 + 0.5 V; (5)Downstream Input Voltage (VDD+, VDD., VSPD, VPIN)1, 2: -0.5 V to VDD2 + 0.5 V; (6)Average Output Current per Pin3 Side 1 (IO1): -10 mA to +10 mA; (7)Side 2 (IO2): -10 mA to +10 mA; (8)Common-Mode Transients4: -100 kV/μs to +100 kV/μs.
Features
ADUM4160BRWZ features: (1)USB 2.0 compatible; (2)Low and full speed data rate: 1.5 Mbps and 12 Mbps; (3)Bidirectional communication; (4)4.5 V to 5.5 V VBUS operation; (5)7 mA maximum upstream supply current @ 1.5 Mbps; (6)8 mA maximum upstream supply current @ 12 Mbps; (7)2.3 mA maximum upstream idle current; (8)Upstream short-circuit protection; (9)Class 3A contact ESD performance per ANSI/ESD STM5.1-2007; (10)High temperature operation: 105°C; (11)High common-mode transient immunity: >25 kV/μs; (12)16-lead SOIC wide-body package version; (13)16-lead SOIC wide body enhanced creepage version; (14)RoHS compliant; (15)Safety and regulatory approvals (RI-16 package); (16)UL recognition: 5000 V rms for 1 minute per UL 1577; (17)CSA Component Acceptance Notice #5A; (18)IEC 60601-1: 250 V rms (reinforced); (19)IEC 60950-1: 400 V rms (reinforced); (20)VDE Certificate of Conformity; (21)DIN V VDE V 0884-10 (VDE V 0884-10):2006-12; (22)VIORM = 846 V peak.

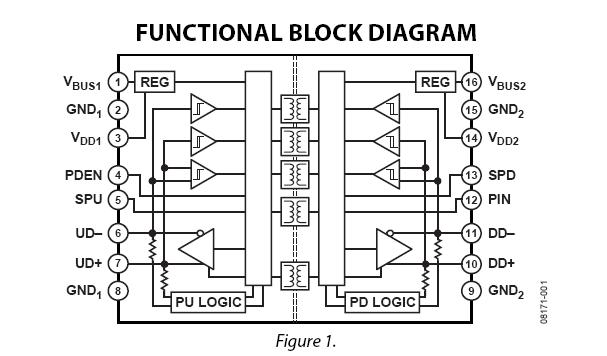

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADUM4160BRWZ |
|
IC USB ISOLATOR FULL/LOW 16SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
ADUM4160BRWZ-RL |
|
ISOLATOR DGTL 5KVRMS 2CH 16-SOIC |
Data Sheet |
|
|
||||||||||||||||||
