Product Summary

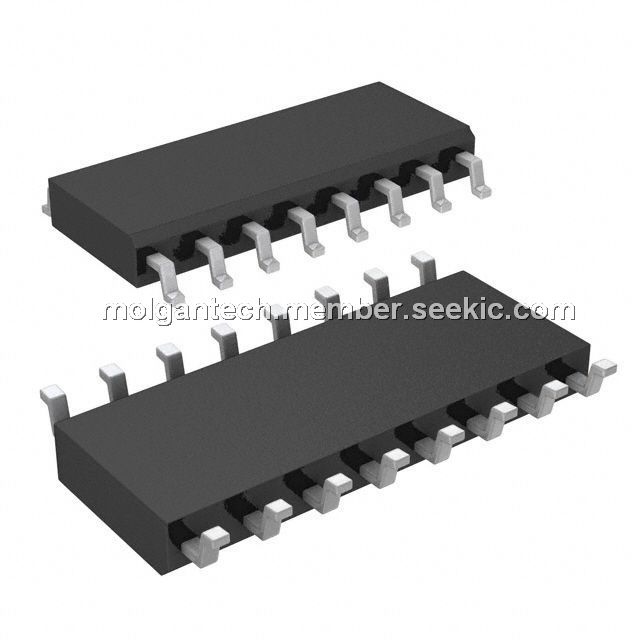

The ADUM5401ARWZ is a quad-channel digital isolator with isoPower an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc., iCoupler technology, the dc-to-dc converter provides up to 500mW of regulated, isolated power at either 5.0V or 3.3V from a 5.0V input supply, or at 3.3 V from a 3.3 V supply at the power levels. The ADUM5401ARWZ eliminates the need for a separate, isolated dc-to-dc converter in low power, isolated designs. The iCoupler chip scale transformer technology is used to isolate the logic signals and for the power and feedback paths in the dc-to-dc converter. The result is a small form factor, total isolation solution. The applications of the ADUM5401ARWZ include RS-232/RS-422/RS-485 transceivers, Industrial field bus isolation, Power supply start-up bias and gate drives, isolated sensor interfaces, Industrial PLCs.
Parametrics
ADUM5401ARWZ absolute maximum ratings: (1)Storage Temperature Range (TST): -55℃ to +150℃; (2)Ambient Operating Temperature Range (TA): -40℃ to +105℃; (3)Supply Voltages (VDD1, VISO)1: -0.5 V to +7.0 V; (4)Input Voltage (VIA, VIB, VIC, VID, VSEL)1, 2 : -0.5V to VDDI + 0.5V; (5)Output Voltage (VOA, VOB, VOC, VOD)1, 2: -0.5 V to VDDO + 0.5 V; (6)Average Output Current per Pin3: -10 mA to +10 mA; (7)Common-Mode Transients4: -100 kV/μs to +100 kV/μs.
Features
ADUM5401ARWZ features: (1)iso Power integrated, isolated dc-to-dc converter Regulated 3.3V or 5.0V output; (2)Up to 500mW output power; (3)Quad dc-to-25 Mbps (NRZ) signal isolation channels 16-lead SOIC package with 7.6 mm creepage; (4)High temperature operation: 105℃ maximum; (5)High common-mode transient immunity: ＞25 kV/μs; (6)Safety and regulatory approvals; (7)UL recognition 2500 V rms for 1 minute per UL 1577 CSA Component Acceptance Notice #5A VDE certificate of conformity (pending); (8)IEC 60747-5-2 (VDE 0884, Part 2); (9)VIORM = 560 V peak.

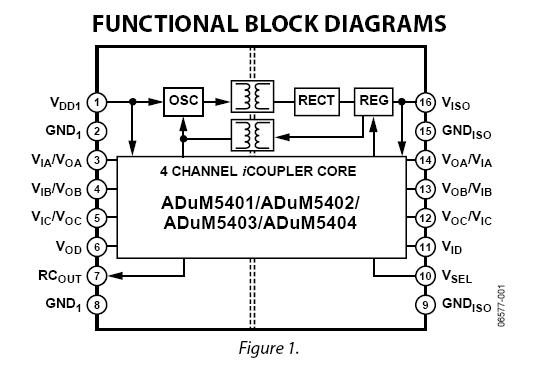

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADUM5401ARWZ |
|
IC ISOLATOR 4CH DCDC CONV 16SOIC |
Data Sheet |
|
|
||||||||||||||||
|
ADUM5401ARWZ-RL |
|
IC ISOLATOR 4CH DCDC CONV 16SOIC |
Data Sheet |
|
|
||||||||||||||||
