Product Summary

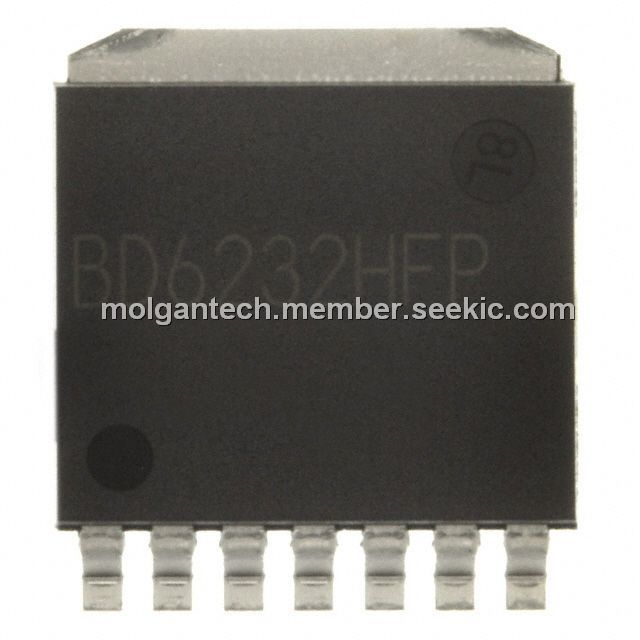

The BD6232HFP-TR is a silicon monolithic integrated circuit.

Parametrics

BD6232HFP-TR absolute maximum ratings: (1)Supply voltage VCC: 36V; (2)Output current IMAX: 2.0*1 A; (3)All other input pins VIN: -0.3 to VCC V; (4)Operating temperature TOPR: -40 to +85 ℃; (5)Storage temperature TSTG: -55 to +150 ℃; (6)Power dissipation pd: 1.4*2 W; (7)Junction temperature Tjmax: 150℃.

Features

BD6232HFP-TR features: (1)Voltage setting pin enables for PWM duty control; (2)Supports PWM control signal input.

Diagrams

BD6232HFP-TR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BD6232HFP-TR
BD6232HFP-TR
ROHM Semiconductor
Motor / Motion / Ignition Controllers & Drivers H-BRIDGE 36V max 1 Chan 2.0A
Data Sheet
0-1: $3.14
1-25: $2.92
25-100: $2.47
100-500: $1.91
